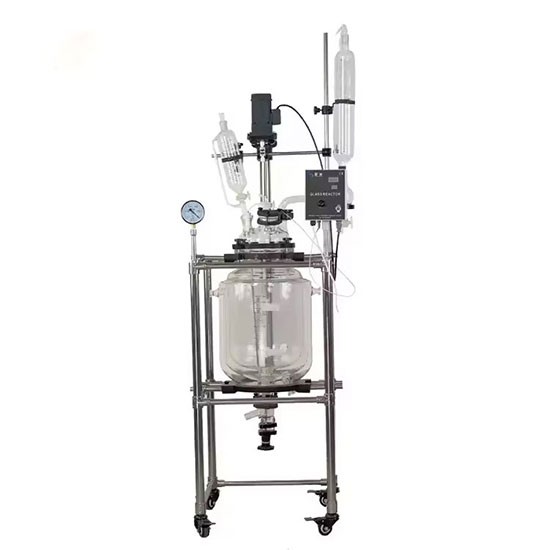

Laboratory Chemical Pilot Plant Double Jacket Three-Layer Glass Reactor - High-Quality Reactor for Light Glass Applications

Dimension(L*W*H) 750*650*2150mm
Glass Material High Borosilicate Glass 3.3
Motor Power 120W
Mixing Shaft PTFE Stirring Blade
Reaction capacity 2L~20L
Jacket Layer 6L

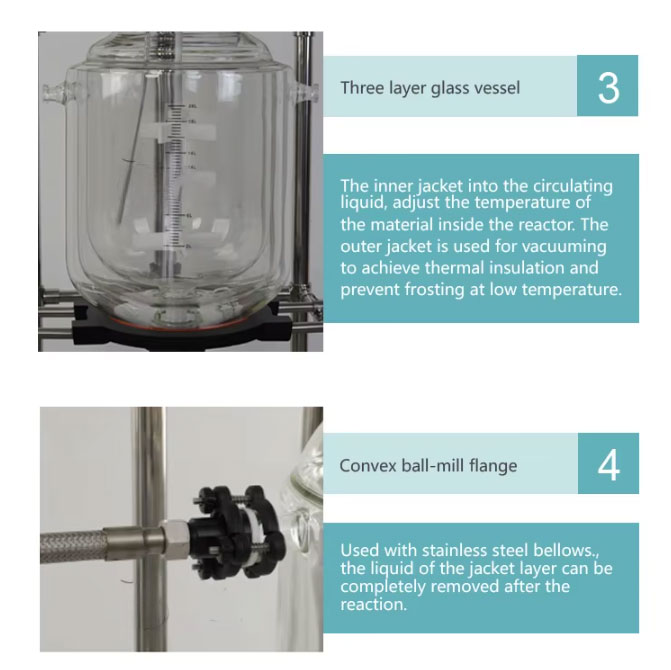

Double Jacket Layer Vacuum protection
Port No. on Lid Six port
Working pressure -0.1~0.1Mpa
Temperature range -120℃~300℃

PRODUCT DETAIL

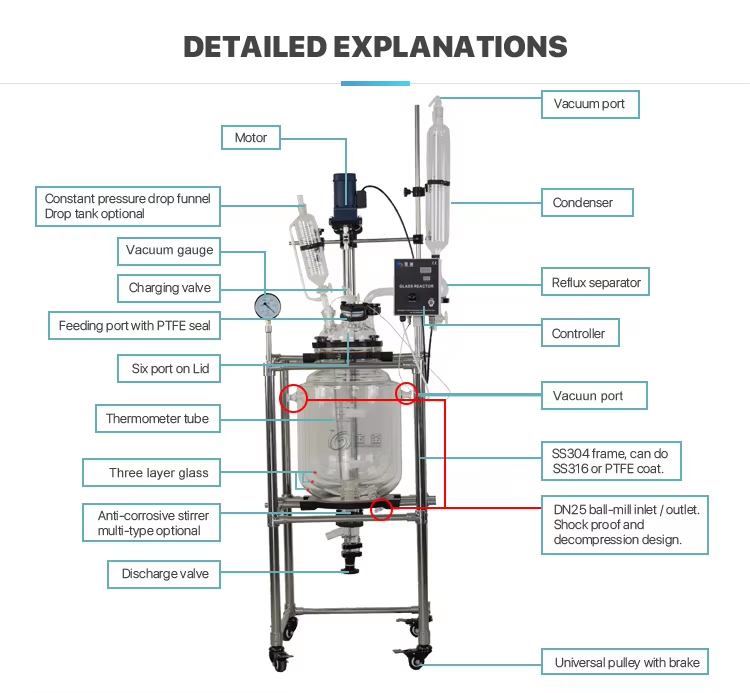

Three-Layer Glass Reactor .jpg

Model	DJR-10L	DJR-20L	DJR-30L	DJR-50L
Reaction capacity	2L~10L	2L~20L	5L~30L	5L~50L
Jacket layer	3L	6L	10L	16L
Double jacket layer	Vacuum Protection
Port no. on the lid	5+1
Stirrer port	50#
Charging valve	34#
Solid feeding port	80# Flange
Thermometer tube	24#(glass tube) / DN25 Flange(SS316 with PTFE coat tube)
Condenser	Spiral condenser
Reflux separator	50#, ball mill mouth
Constant pressure drop funnel	40#,1000ml	40#,1000ml	40#,2000ml	40#,2000ml

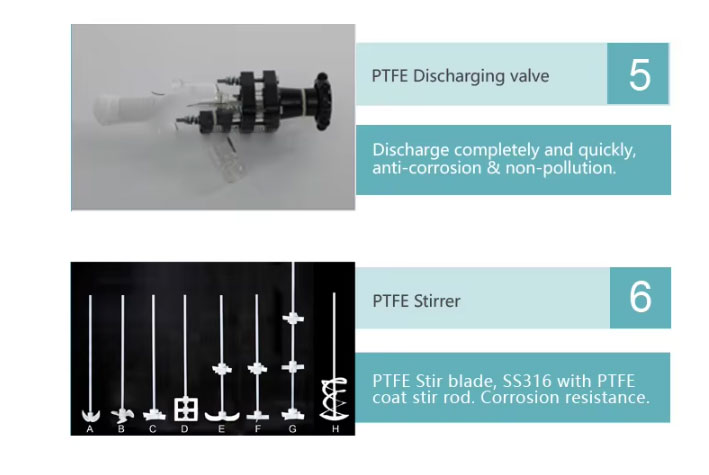

Discharge port	OD:32mm, ID:22mm
PTFE Stirrer	Four-blade type	Four-blade type	Four-blade type, two-layer	Four-blade type, two-layer
Connect tube	According the high temperature equipped
Voltage	220V/50Hz (110V/60Hz optional)
