Dimension(L*W*H) 1250(Front)*850*2520mm
Rotary flask 50L
Rotation speed 20~90rpm
Collection flask 20L with discharge valve
Heating range RT~200℃
PTFE sealing Excellent corrosion resistance
Heating Power 6KW
Lift type Electric lift

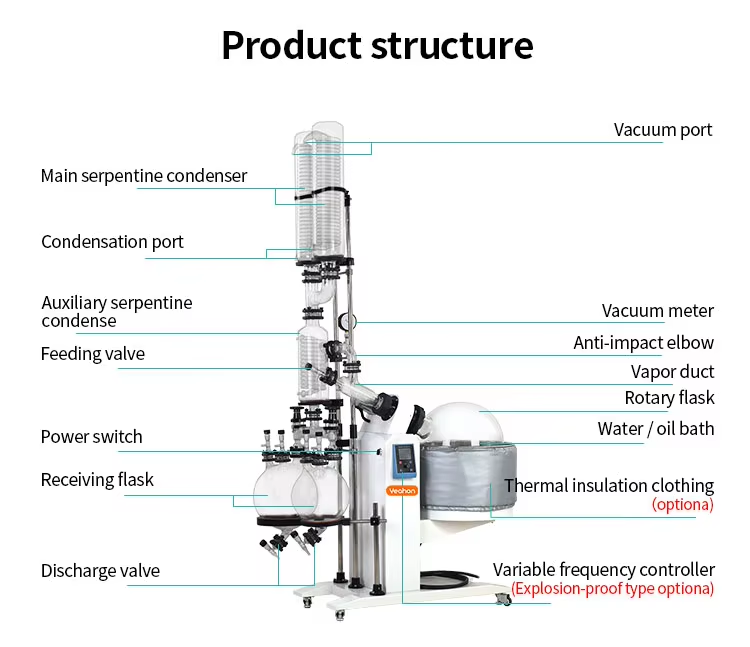

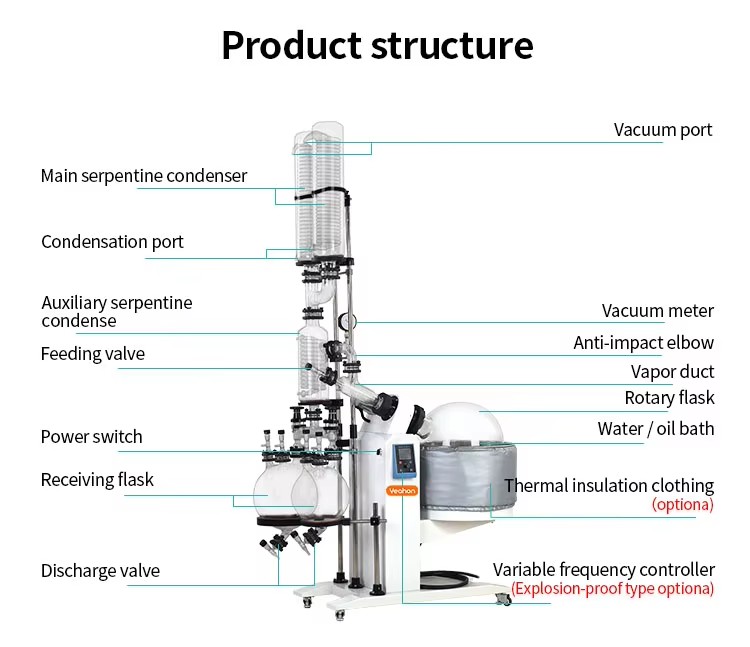

PRODUCT DETAIL
| Model | RE10-2CC | RE20-2CC | RE50-2CC |
|---|---|---|---|
| Rotary Flask | Φ125mm (4.92) Flange mouth | ||
| Rotary Flask | Maximum load not to exceed 60% of the flask's capacity | ||
| Rotary Flask | 10L (2.64 gallon) | 20L (5.28 gallon) | 50L (13.2 gallon) |
| Rotary Motor | 250W | ||
| Rotary Speed | 20~120r/min | 20~90r/min | |
| Evaporation Capacity | H₂O ≥3.2L/h Alcohol ≥6.5L/h | H₂O ≥5L/h Alcohol ≥11L/h | H₂O ≥9L/h Alcohol ≥19L/h |
| Receiving Flask | 5L (1.32 gallon) * 2pcs | 10L (2.64 gallon) * 2pcs | 20L (5.68 gallon) * 2pcs |
| Condenser | 2pcs * Main Condenser + Auxiliary | ||
| Attainable Vacuum | -0.098MPa | ||
| Vacuum Sealing | PTFE + Viton redisign gaskets, Excellent resistance to corrosive | ||
| Heating Bath | Stainless Steel | ||
| Material Quality | Stainless Steel | ||
| Temp. Range | Water: RT to 99°C / Oil: RT to 200°C | ||
| Bath Power | 3KW | 6KW | |
| Electric Lift | Max Lifting Distance 200mm (7.87in) | ||
| Machine Size(W*D*H) | 1050*750*2150mm | 1220*800*2300mm | 1250*850*2520mm |
