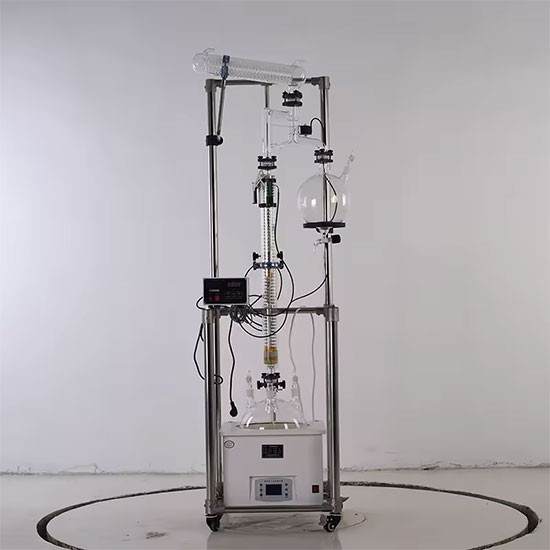

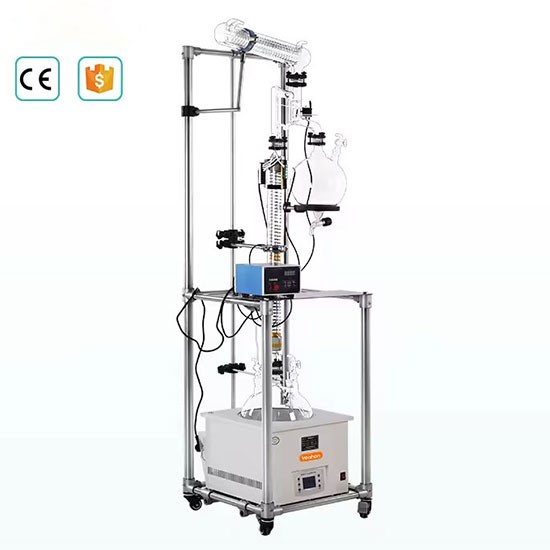

10L Laboratory Horizontal Rectification Column with Electromagnetic Reflux Funnel for Efficient Distillation

Power 650W
Name Lab rectifying column
Distillation kettle 10000ML
Distillation column D35*L1000mm
Heater controller 500W
Distillation head Reflux ratio distillation head
Glass cock switch 24#
Distillate receiver 2000ML

PRODUCT DETAIL

Rectification Column.jpg

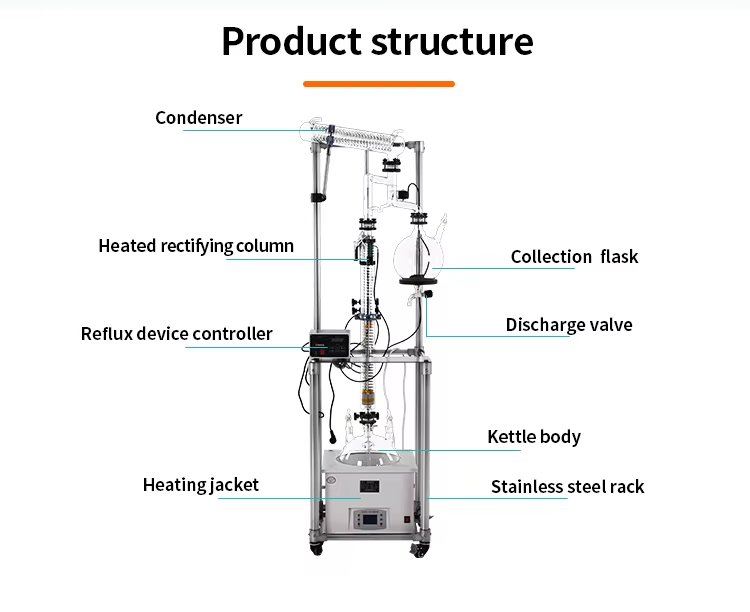

NO	Name	Specification	Quantity	Explain
1	Thermometric sleeve		1 piece	Connect the tower tank temperature measuring port, tower tank, tower temperature measurement
2	Glass cock switch	24#	2 piece	Feed
3	Precision distillation column	Φ35×1000mm	1 section	The upper and lower mouth is 24# standard grinding (can also be made on request) with electric heating wire
4	Heater		1 piece	Matching distillation column using controller, digital display temperature
5	Precision rectifying head	Matching with equipment	1 piece	Electromagnet automatic control of reflux ratio snaking tube condenser, steam inlet, tower top gas phase temperature measuring port, discharge port
6	Fraction receiver	2000ml	1 piece	Fraction acceptance
7	Secondary condenser	Diameter 30×400MM	1 piece	Optional
8	Glass cock switch	24#	1 piece	Replace the receiving bottle under vacuum
9	Reflux ratio controller	KLTC-1F	1 set	Power cord included
10	Packing		1 set	Glass spring packing
11	Electromagnet	36V	1 piece	Used to control reflux and recovery
12	Heating device	10000ML	1 set	ZNCL-TS 10L Magnetic stirring electric heating sleeve
13	Mounting bracket		1 set	Stainless steel frame
14	Instrument clamp		Several	Including universal clip, cross clip
15	Vacuum tube		3m	Vacuum pipe connection
16	Vacuum silicon ester		1 box	Vacuum seal
